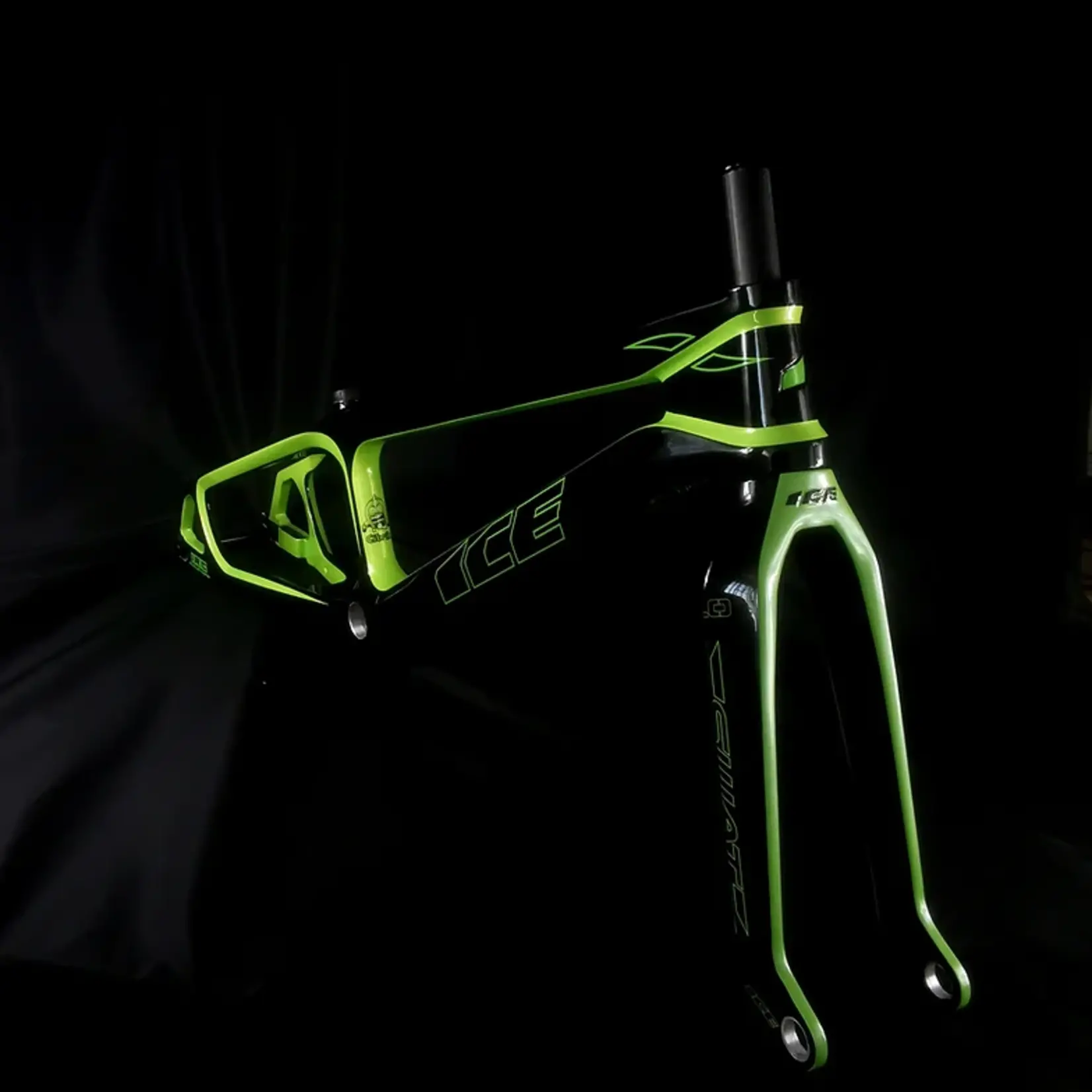

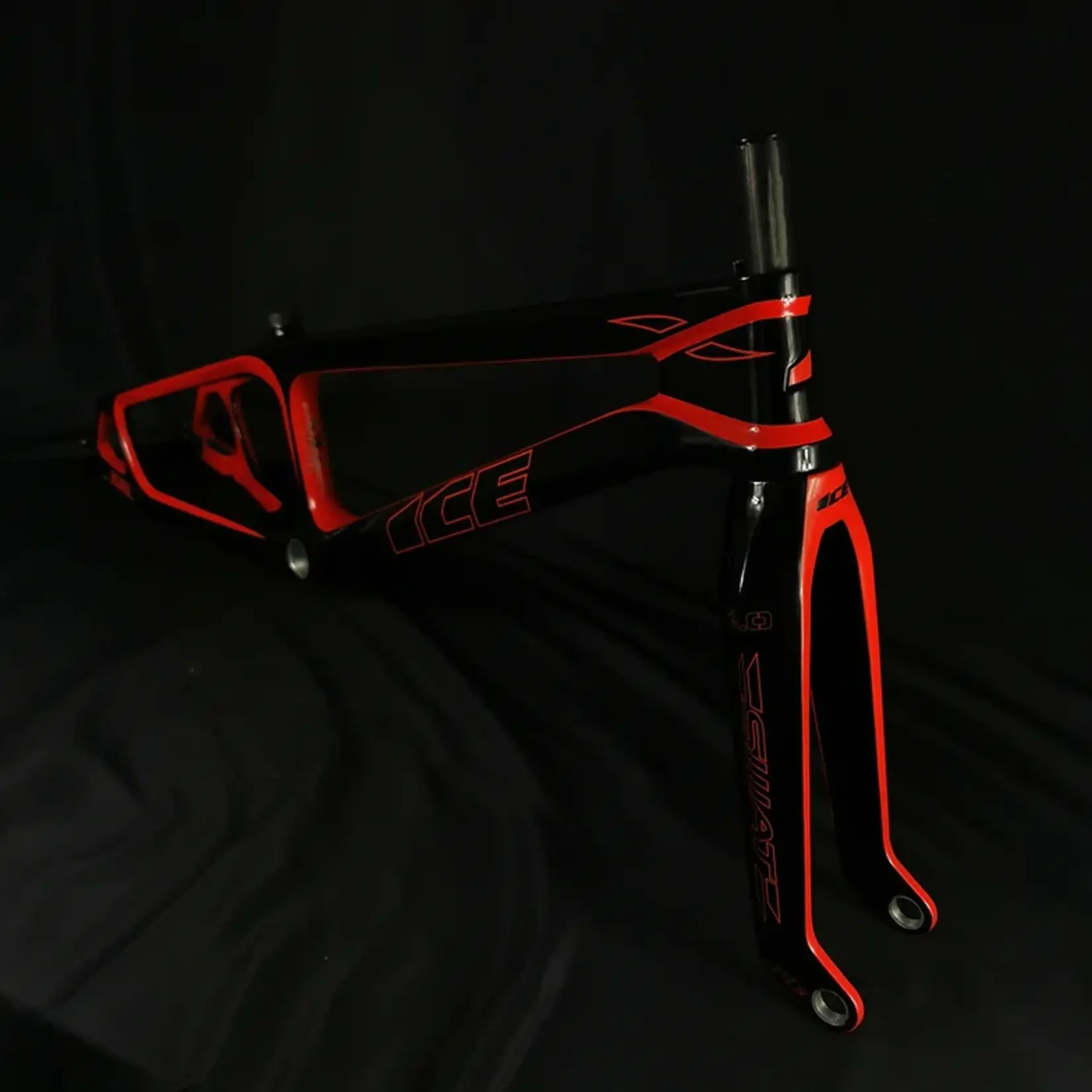

ICE ‘’RAPTOR’’ CARBON BMX FRAME & FORK

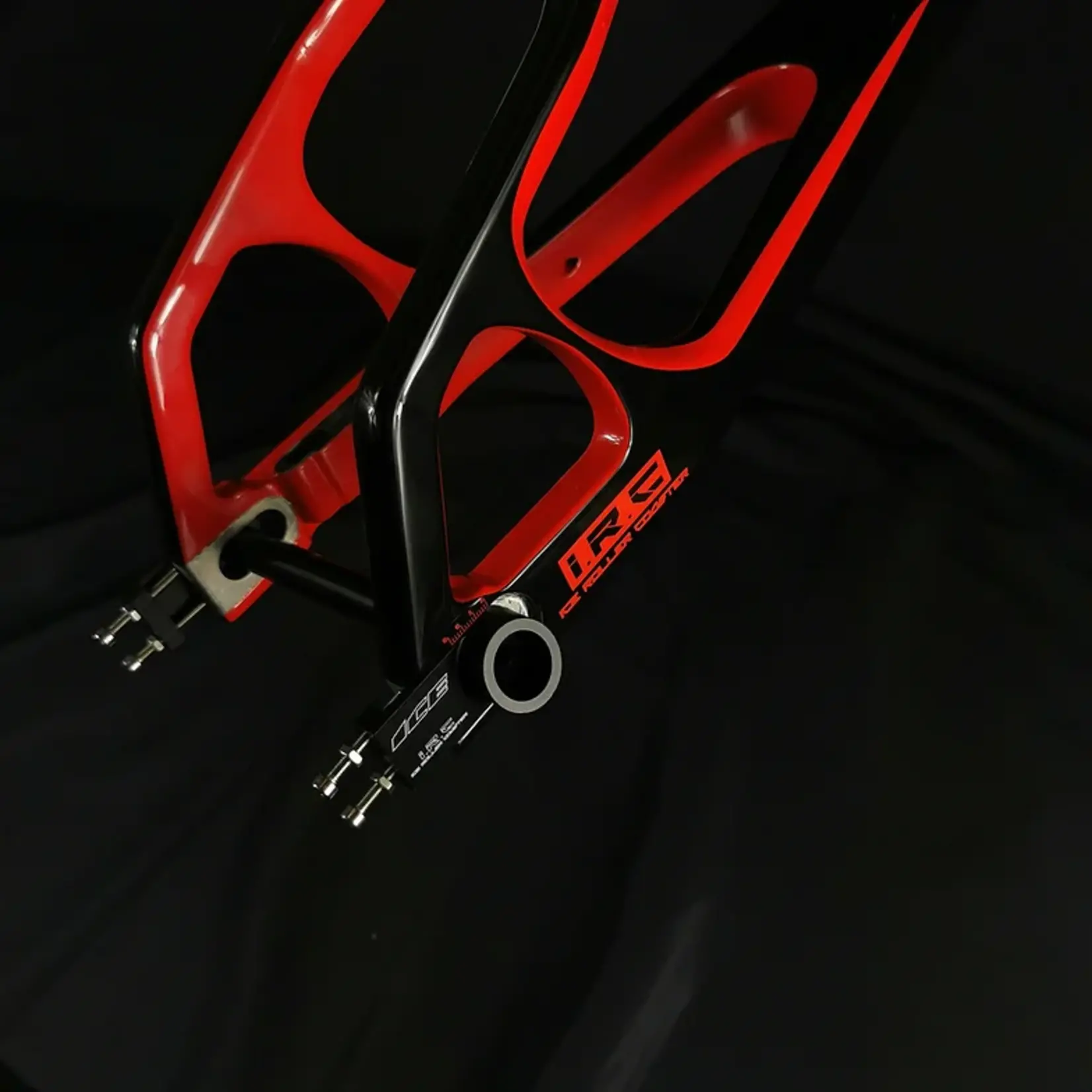

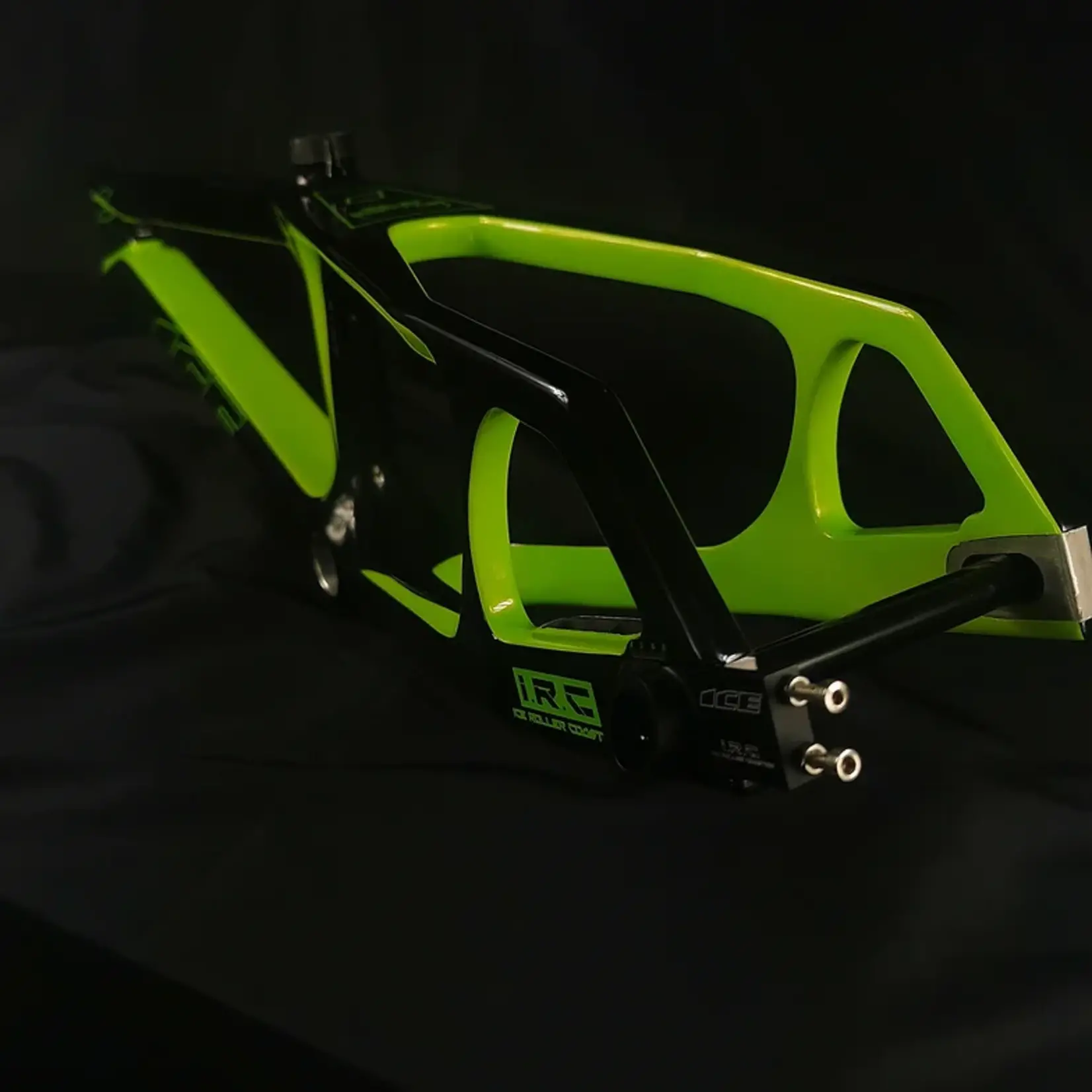

Frameset delivered with Swat 2.0 Swat Fork, IRC TC chain tensioning system and rear Ø15mm thru-axle.
This ICE ‘’RAPTOR’’ frame is made from best quality Toray T700 + T800 carbon fiber.
Internally-guided cables using carbon-made ‘’Pipeline’’for a smooth guiding and appreciable ease of assembly.Housing inlet at the head tube and outlet at the inner level of the left chainstay for direct connection to your brake caliper.

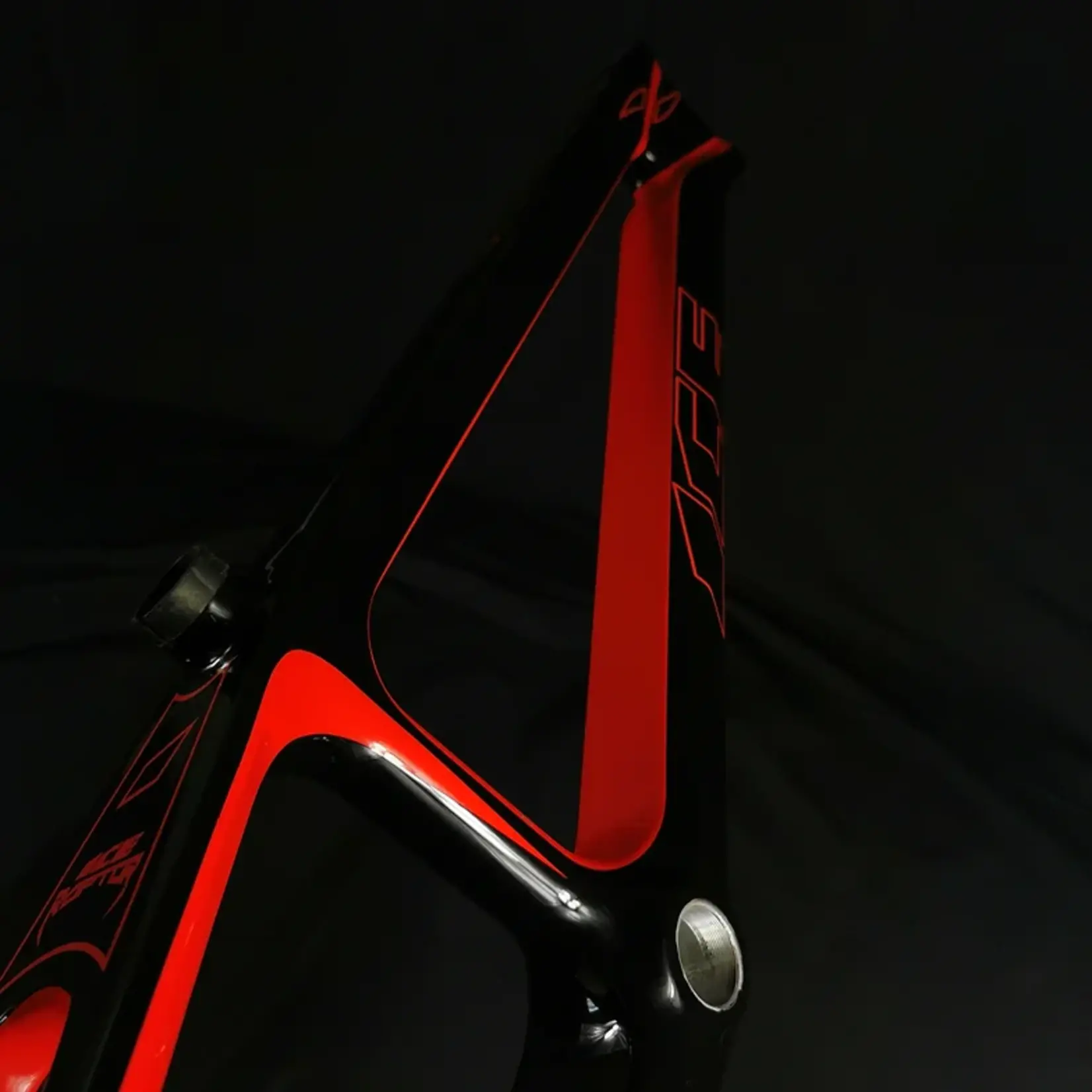

Tapered head tube at integrated standard (SHIS : IS42/28,6-IS52/40)
(Also accepts mounting of a fork with a 1'1/8 steerer with a reducing baseplate)
External BSA 24 (Shimano Hollowtech II) bottom bracket

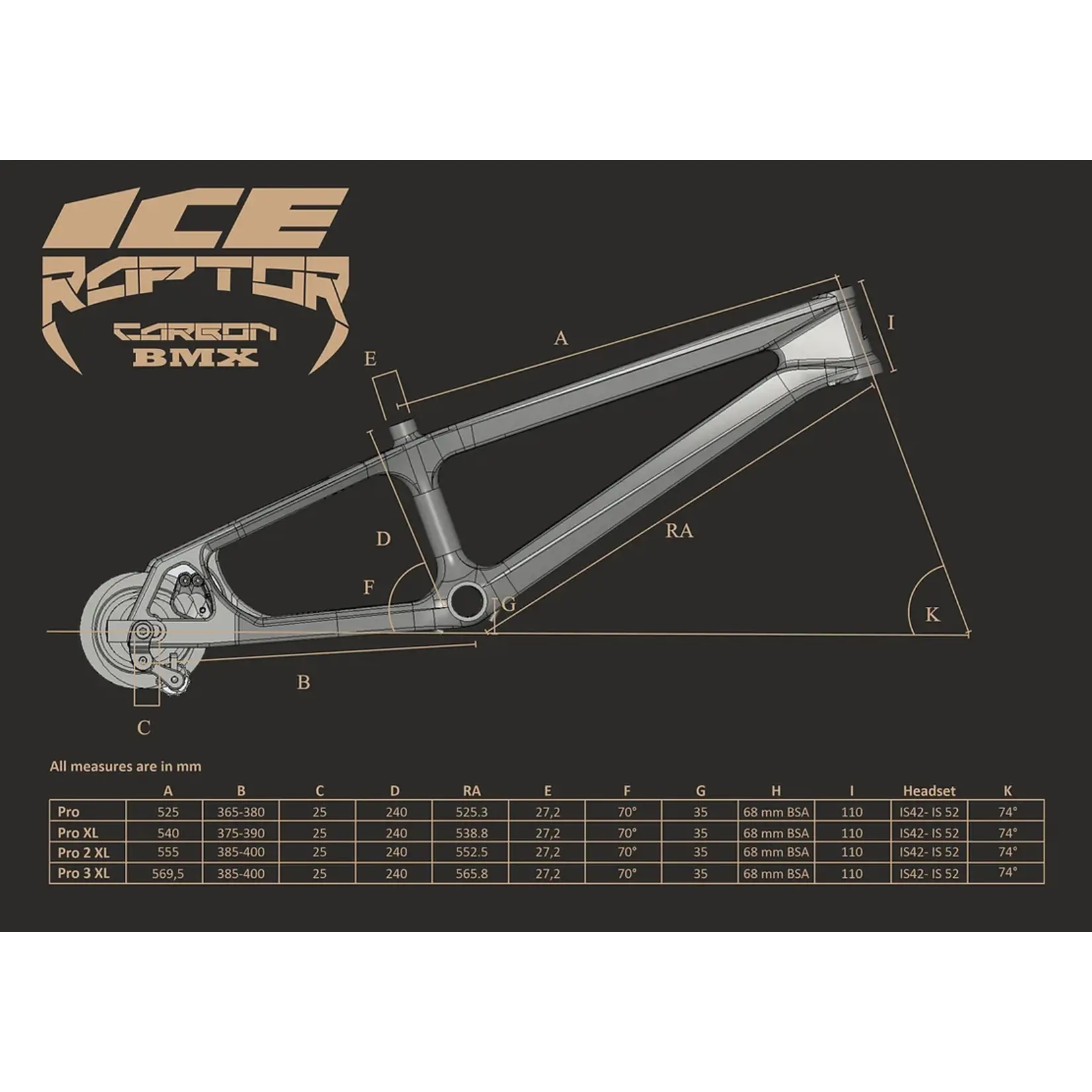

15 mm of real setting for the rear wheel / Precise setting of rear wheel :
From 365 to 380mm real setting in PRO
From 375 to 390mm real setting in PRO XL
From 385 to 400mm real setting in PRO XXL and PRO 3XXL
Accepts a Ø 27,2 mm seatpost
Ø 31.8mm seatclamp
Weight : 1.380 kg in PRO XXXL
Available in 4 sizes : PRO, PRO XL, PRO 2XL, PRO 3XL

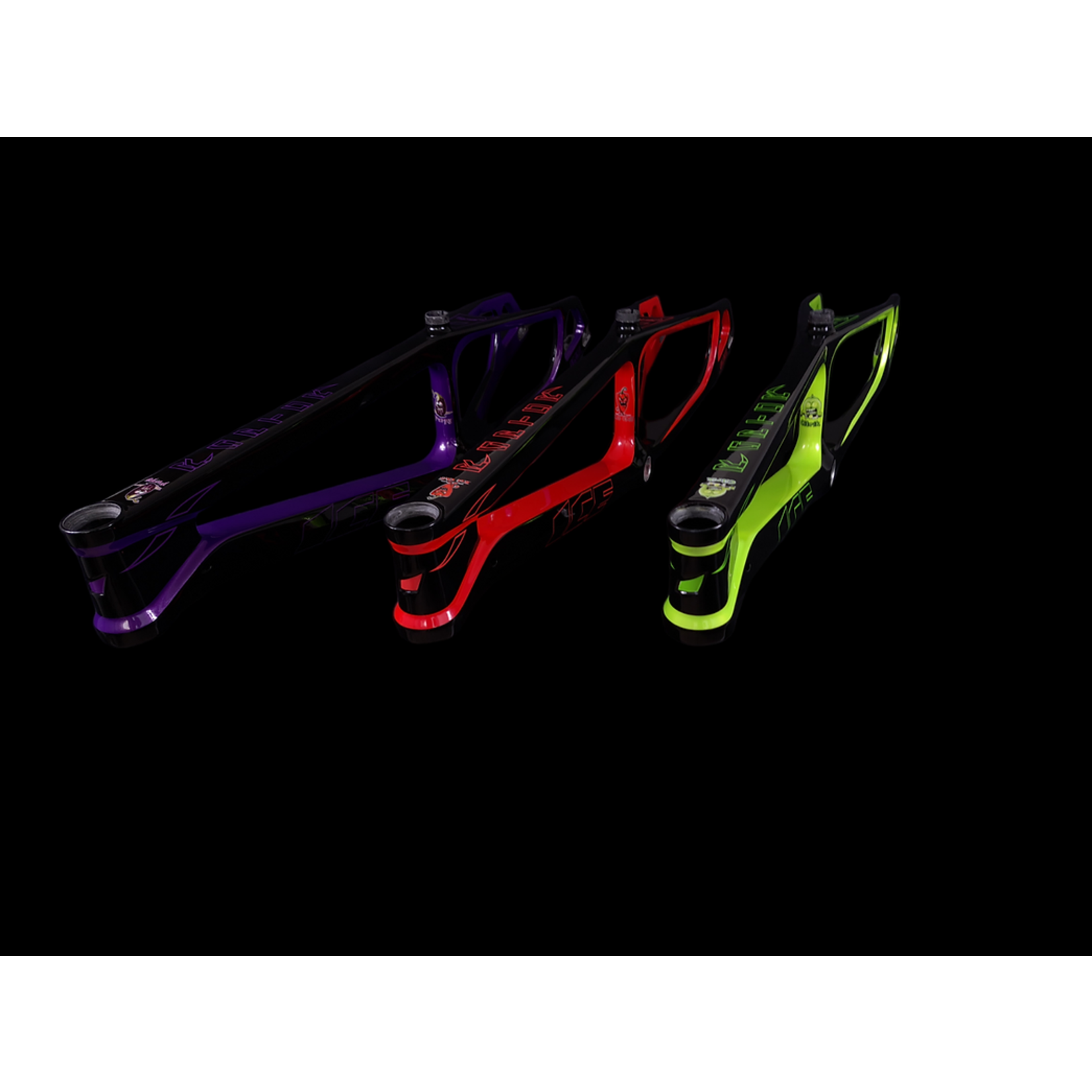

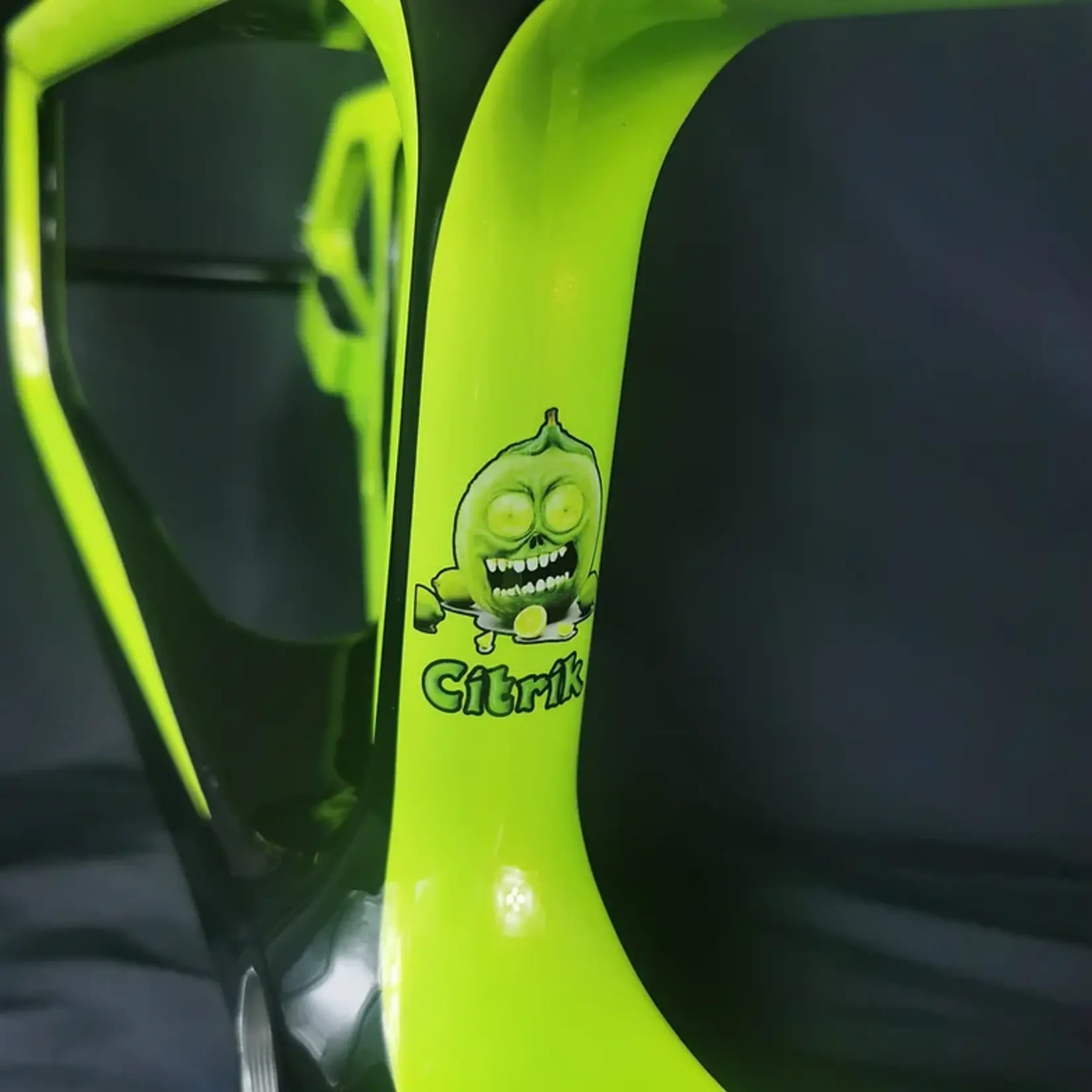

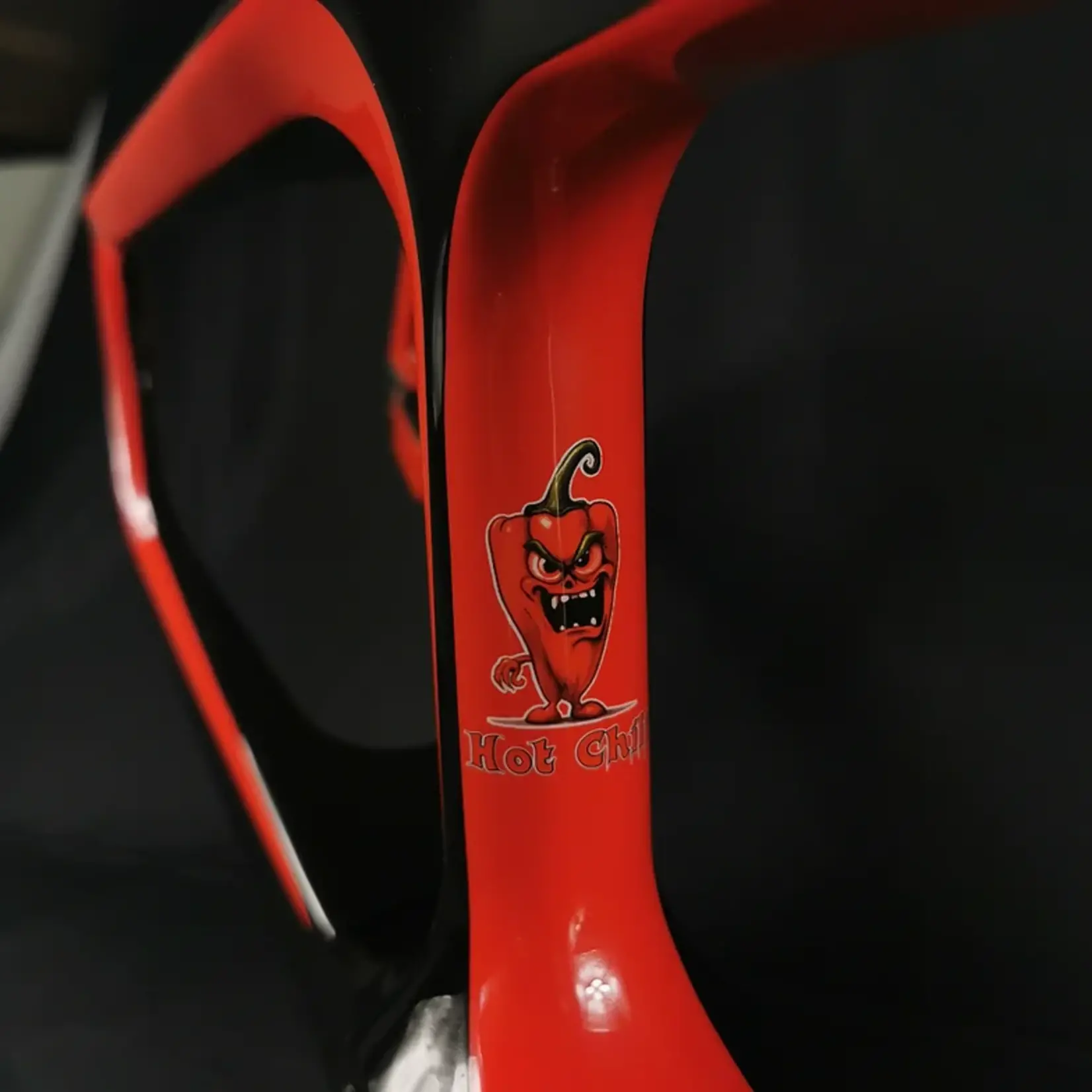

Color : Glossy Red and Black (HOT CHILI), Metallic Purple and Black (PURPY), Metallic Lime and Black (CITRIK)
/ ! \Frame designed for disc-braking only, without V-brake adapters
